MV型系列气体隔膜压缩机
|
|
| 型号︰ | M2V-8-18/4-8-20 |
| 品牌︰ | NTYT |
| 原产地︰ | 中国 |
| 单价︰ | - |
| 最少订量︰ | 1 件 |
|
|
|
|
|
|
|
| Listing Description |
1. Volumetric gas Compressor;
2. Diaphragm compressor;
3. Water cooling;
4. Customization is available |
Main Technical Parameters of Diaphragm Compressor
|
Model
|
Capacity
|
Inlet pressure
|
Discharge pressure
|
Morotr power
|
Overall size
|
Weight
|
| |
(Nm3/h)
|
(Mpa)
|
(Mpa)
|
(KW)
|
(mm)
|
(t)
|
|
M2V-8-18/4-8-200
|
8-18
|
0.4-0.8
|
20
|
5.5
|
1450x845x1200
|
0.85
|
|
M2V-20/1-25
|
20
|
0.1
|
2.5
|
5.5
|
1450x845x1120
|
0.85
|
|
M2V-40/7-25
|
40
|
0.7
|
2.5
|
5.5
|
1450x845x1120
|
0.75
|
|
M2V-10/25
|
10
|
air pressure
|
2.5
|
5.5
|
1450x845x1120
|
0.85
|
|
M2V-5/200
|
5
|
air pressure
|
20
|
3
|
1510x875x1050
|
0.73
|
|
M2V-10/7-150
|
10
|
0.7
|
15
|
5.5
|
1550x900x1050
|
0.73
|
|
M2V-5/4-350
|
5
|
0.4
|
35
|
5.5
|
1519x875x1097
|
0.7
|
|
M2V-10/13
|
10
|
0.1
|
1.3
|
3
|
1510x875x1050
|
0.73
|
|
M2V-8/2.5-160
|
8
|
0.25
|
16
|
5.5
|
1600x900x1200
|
0.73
|
|
M2.5V-10/200
|
10
|
air pressure
|
20
|
7.5
|
1650x1020x1400
|
1.8
|
|
M2.5V-18/5-350
|
18
|
0.5
|
35
|
11
|
1800x950x1500
|
1.5
|
|
M2.5V-12/5-350
|
20
|
0.5
|
35
|
11
|
1800x950x1500
|
1.5
|
|
M2.5V-20/4-160
|
20
|
0.4
|
16
|
11
|
1800x1500x1100
|
1.8
|
|
M2.5V-50/10-160
|
50
|
1
|
16
|
18.5
|
2300x1330x1750
|
1.8
|
|
M3V-20/200
|
20
|
air pressure
|
20
|
15
|
1835x1065x1400
|
1.82
|
|
M3V-30/25
|
30
|
air pressure
|
2.5
|
22
|
1835x1065x1400
|
2
|
|
M3V-20/40
|
20
|
air pressure
|
4
|
15
|
1835x1065x1400
|
1.82
|
|
M3V-40/7-150
|
40
|
0.7
|
15
|
22
|
2302x1385x1444
|
2.5
|
|
M3V-80/7-150
|
80
|
0.7
|
15
|
22
|
2267x1065x1400
|
2
|
|
1M3V-40/13
|
40
|
air pressure
|
1.3
|
15
|
1860x890x1235
|
1.8
|
|
1M3V-150/2-2.5
|
150
|
0.2
|
0.25
|
15
|
1860x890x1530
|
1.8
|
|
2M3V-40/13-200
|
40
|
1.3
|
20
|
15
|
1922x925x1465
|
1.8
|
|
2M3V-100/24-125
|
100
|
2.4
|
12.5
|
22
|
2160x1250x1500
|
2
|
|
1M3V-40/6
|
40
|
air pressure
|
0.6
|
15
|
1922x925x1465
|
1.8
|
|
1M3V-160/8-60
|
160
|
0.8
|
6
|
30
|
2200x1500x1800
|
3.2
|
|
1M3V-120/3.5-12
|
120
|
0.35
|
1.2
|
30
|
2200x1350x1800
|
2.5
|
|
|
|
|

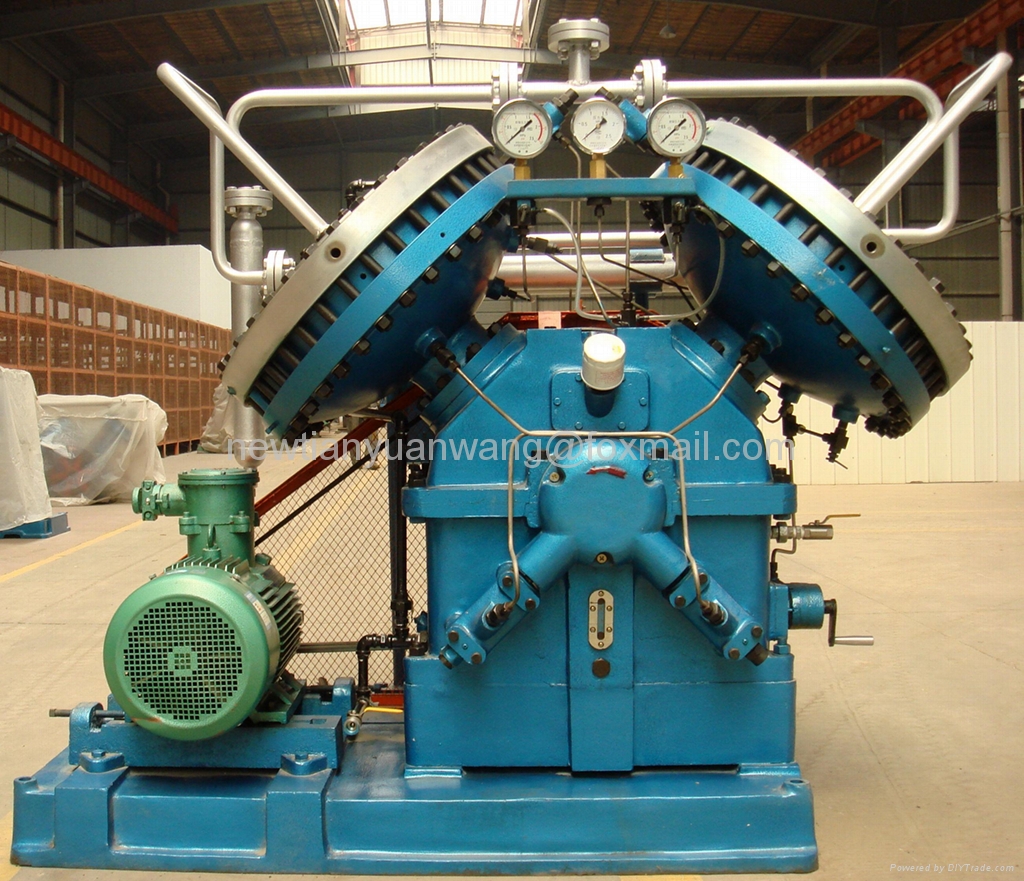

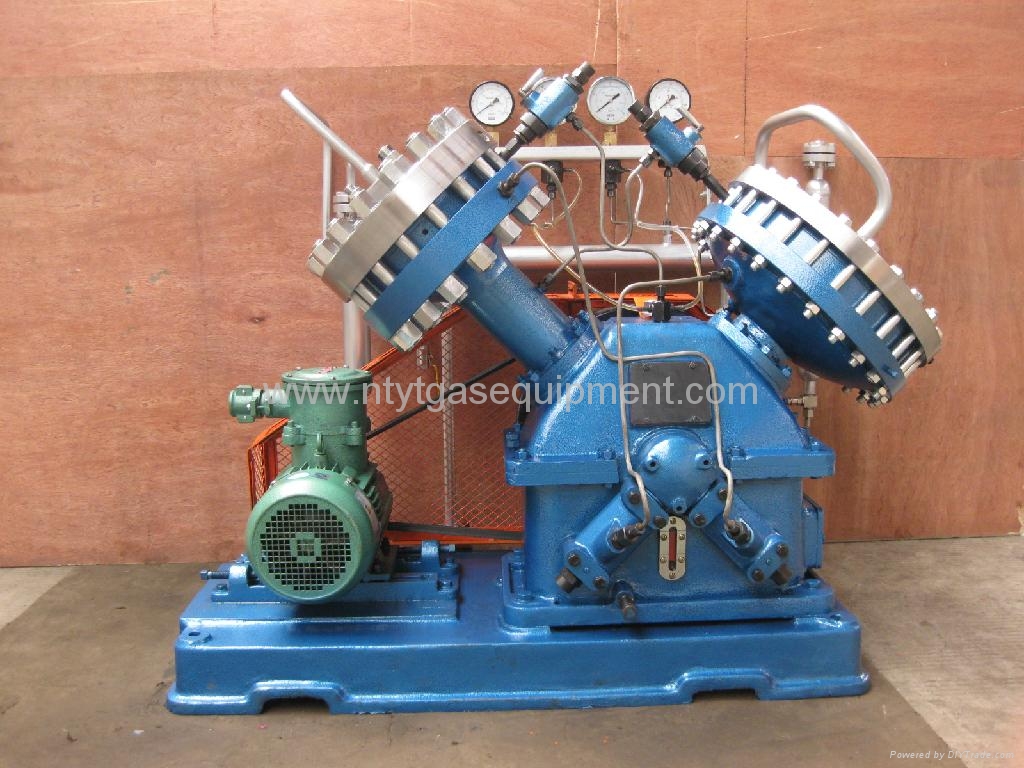

产品图片
|
|
|
