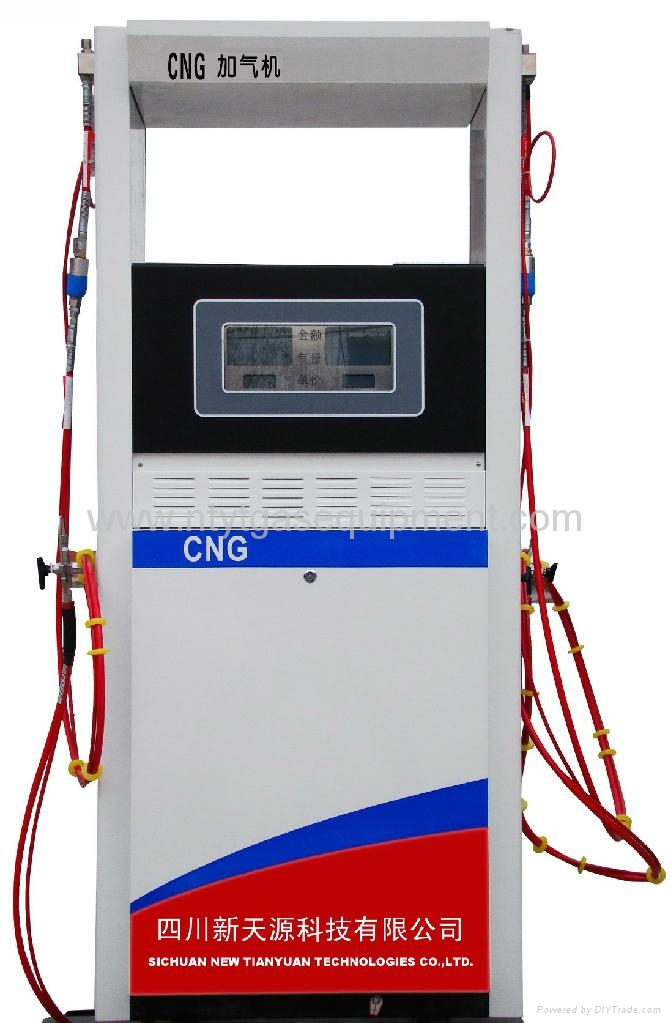

DETAILS OF DISPENSER:
• 1. No. of dispensers: 2 Nos. for double-hose dispenser, China made.
• 2. Dispenser Specification: 2 Lines, Fast fill, double hose;
• 3. Flow Capacity: 0~24m3 /min.. for double-hose dispenser.
• 4. Operating Temp.: -25 ~ 50 (℃);
• 5. Operating press.:20 ~ 25 Mpa;
• 6. Design press.: 27.5 Mpa
• 7. Design Temp.: 80 (℃);
• 8. Inlet lines: 2 Lines;

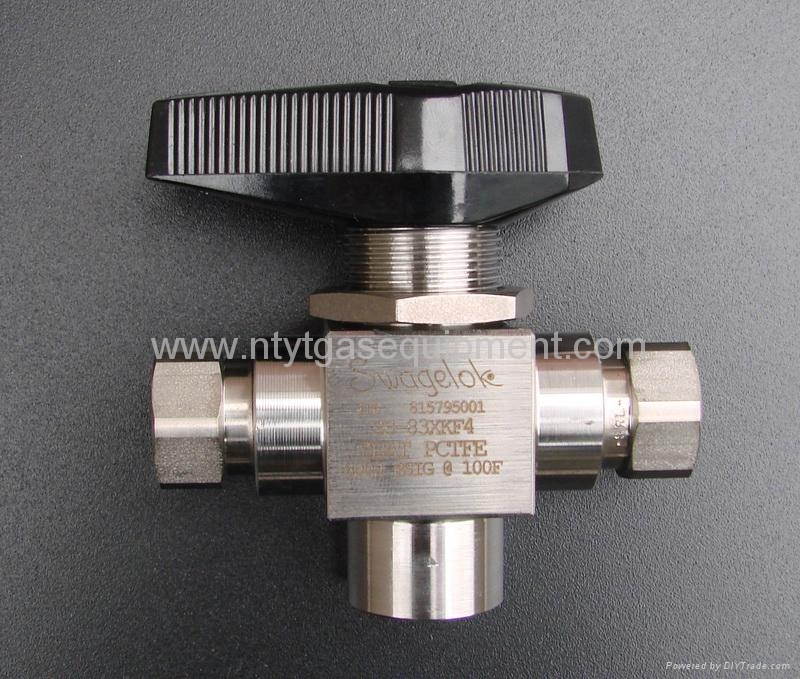

• 9. Valves & instrumentation: High-performance pilot-operated explosion-proof stainless steel
solenoid valve, special solenoid valve, stainless steel safety valve, 6 by-pass cut-off ball valve,
stainless steel controlling ball valve, stainless steel filling ball valve, non-return valve, stainless
steel pressure limiting valve, stainless steel oil-filling vibration-resistance antisepticising
pressure gauge;
• 10. Particulate filter: Online pressure release precise filter 5µ;
• 11. Flow meter: Mass flow meter made in USA;
• 12. Break away system.: Made in Joint-venture of China.
• 13. Nozzle type: NGV1;
• 14. Hose dimension as ANSI NGV 4.1 , L < 5(m): 5m;
• 15. Pressure - Temperature compensation system: Integrated with flow meter;

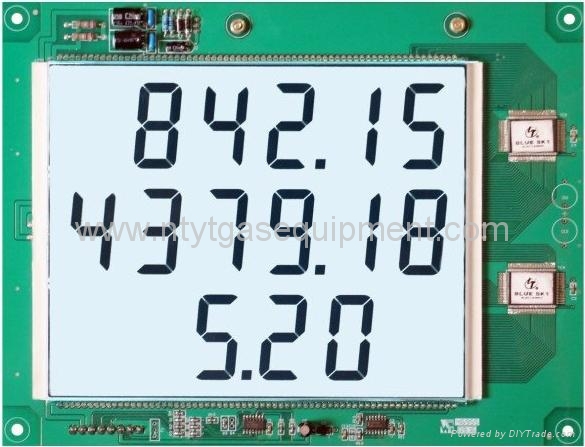

• 16. Back light digital display: LCD;
• 17. Saving data in case of failure: Data saving in case of failure;
• 18. On / off bottom: Made in Joint-venture of China;
• 19. Card reader:RF-ID card;
• 20. Installation: Install at site under roof;
• 21. Duty: Uninterrupted duty;
• 22. Ambient Temp.: -25 ~ 55 (℃ );
• 23. Special tools for commissioning, start – up & maintenance: As per Sales Contract
and packing list;
• 24. Tests, painting , packing , etc.: As per Chinese export standard;
• 25. Supervision on installation and pre commissioning As per Sales Contract;
• 26. Spare parts for commissioning , start up & two years operation: As per Sales Contract;
• 27. Codes and standards: As per national standard equivalent to the international codes and standards.
• 28. Model, manufacture name & country of origin: JQDS-30. A(3MHX) made in China;
• 29. Dispenser overall dimensions & weight: Weight=250 KG, Dimention 1160x590x2175 mm;
• 30. Preset range of unit price: 0.01-99.99 Dollar/m3;
• 31. Preset range of density: 0.0001-0.9999;
• 32. Electrical Power(KW): 220V±15% 50Hz±1HZ, 120W;
• 33. Degree of protection (IP): IP 54;
34. RAL of enclosure color: #45 steel enclosure with baking finish, any color available;
