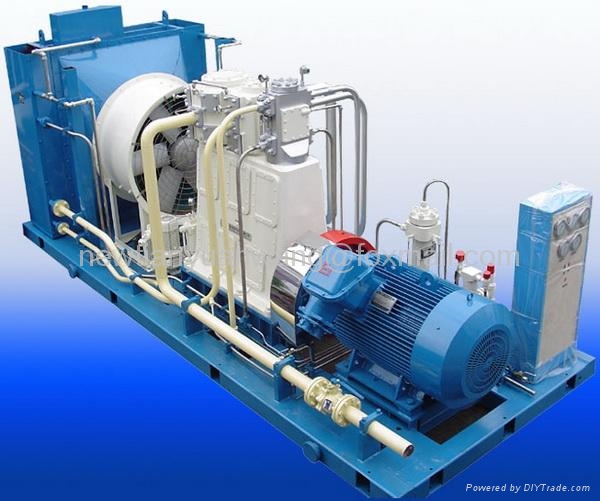

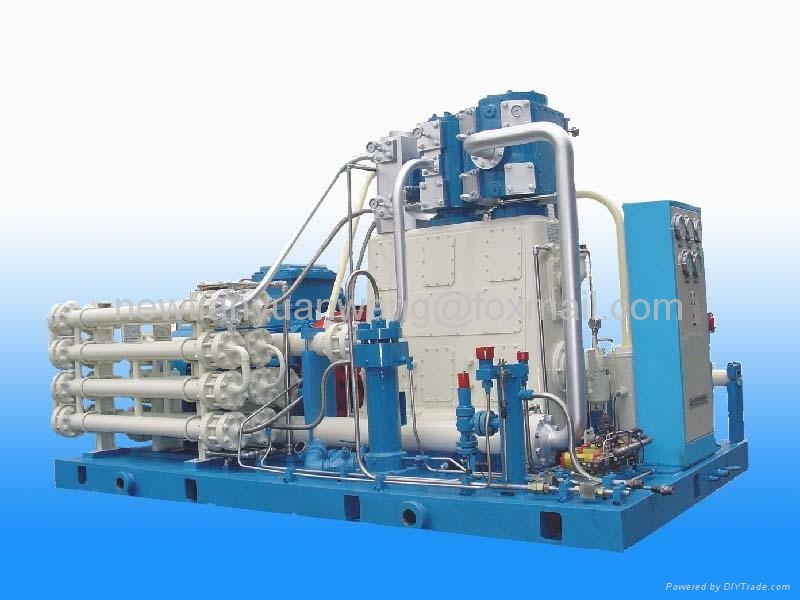

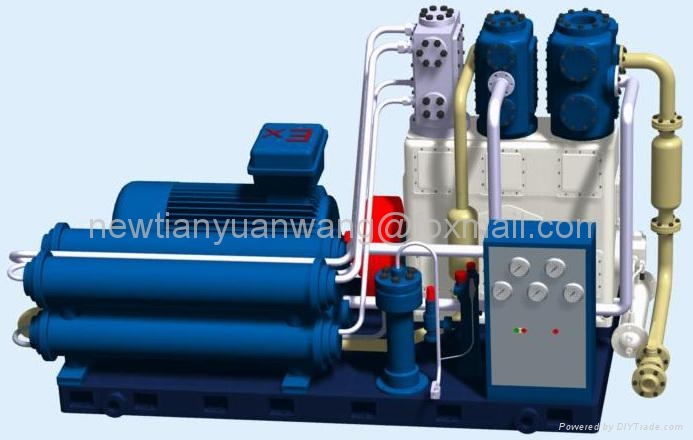

風冷電動ZW型CNG壓縮機
|
|
| 型號︰ | ZW-7.8/0.56-250 |
| 品牌︰ | NTYT |
| 原產地︰ | 中國 |
| 單價︰ | - |
| 最少訂量︰ | 1 件 |
|
|
|
|
|
|
|
Detailed Product Description
Model: ZW-7.8/0.56-250
Media: Pure natural gas
Intake pressure: 0.07Mpa
Outlet pressure: 25Mpa
Intake temp of gas: ≤30°C ≥ 0°C
Outlet temp of gas: ≤40°C (After water cooling, and when Intake temp. of gas≤32°C, temperature of cooling water ≤30°C+)
Displacement of Piston: 7.8M3/min
Piston Stroke: 140 mm
Capacity: 540 Nm3 / h (When intake temp. of gas = 20°C, 0.1013Mpa)
Working temp: ≤50°C
Stages: 4 stages
Type of driven: Direct driving
Compressor speed: 740 RPM
Power of shaft: 155Kw
Lub oil consumption: Oil lubrication for cylinder and packing seal kits.
Capacity of circulating water: 25/30 ton/h
Pressure of circulating water: 0.2 ~ 0.3Mpa
Pressure of oil pump: 0.2 ~ 0.45Mpa
Lubricating Driving unit: By oil pump
Driven by: Electric Motor
Weight of compressor: 11 tons
Compressor size(L x W x H): 4.2 x 2x 2.1M |
|
|
|
