20 Feet T50 ISO Tank Technical Data
| Product name |

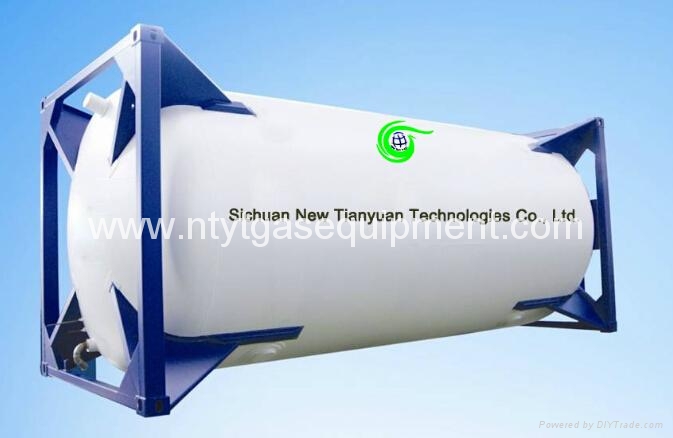

20 Feet T50 Cryogenic Tank Container |
| Design specification |
1. GB150 Pressure Vessel
2. JB/T4784
Supervision Regulation on Safety Technology for Transportable Pressure Vessel |
| Geometric volume |
24.5m³ |
| Working pressure |
2.2Mpa |
| Design temperature |
-30～+50℃ |
| Filling medium |
LPG,butene |
| Tank material |
Q345R |
| Tank weight |
8000Kg |
| Max. filling weight |
34000Kg |
| Overall size |
6058*2438*2591mm |
