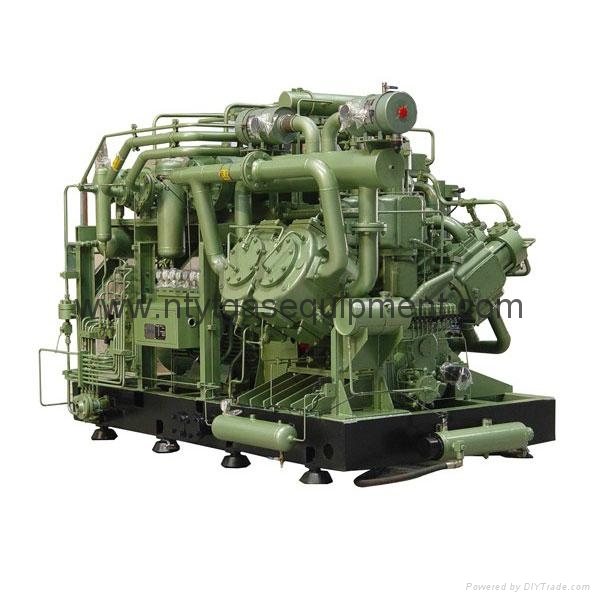

W-Type Water Cooling Atmosphere Suction Pressure Inert Gas Compressor
| (CNG Compressor W-10/250) Basic Techinical Data |
| S.No. |
Item |
Technical data |
| 1 |
Model |
W-10/250 |
| 2 |
Media |
Inert Gas |
| 3 |
Structural formation |
W type |
| 4 |
Copmression stages |
Four |
| 5 |
Nominal volume flow (m³/min) |
7.2 |
| 6 |
Suction pressure (Mpa) |
Atmosphere |
| 7 |
Discharge pressure (Mpa) |
25 |
| 8 |
Suction temperature (℃) |
<40℃ |
| 9 |
Discharge temperature (℃) |
<160℃ |
| 10 |
Power (KW) |
185KW |
| 11 |
Water cooling mode |
water cooling |
| 12 |
Standard volume flow (Nm³/h) |
1700Nm³ |
| 13 |
Outer dimension(L×W×H mm) |
4100x2000x2100 |
Structure features:
Special gas compressor has reciprocating piston structure, is mainly divided into two parts, the moving parts and fixed parts, which are made up of cooling system, circuit system, control system, piping and auxiliary machinery. The moving parts are made up of crankshaft, connecting rod, crosshead, piston, valve and etc.. The fixed parts are made up of the fuselage, midbody, cylinder head, cylinder, cylinder block and etc..
Our company has a professional technologists and service engineer team, and we make great effort in products R&D, design, processing, assembling, testing, after-sale services, etc., to provide our customers with the best services. Our company is equipped with over 200 sets of mechanical processing equipment and full sets of technical testing equipment. We are capable of lathe processing, bench processing, plane processing, milling, grinding, CNC processing, cold working, welding, assembling, testing, etc., to meet our customers' requirement to provide you the best products.
