Quick Details
- Condition: New
- Type: Diaphragm
- Configuration: Stationary
- Power Source: AC Power
- Lubrication Style: Oil-less
- Mute: No
- Place of Origin: Sichuan, China (Mainland)
- Brand Name: New Tianyuan
- Model Number: GV-8/8-160
- Voltage: 380V
- Dimension(L*W*H): 1310*686*980mm
- Weight: 650KG
- Certification: SGS
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
| Packaging Details: |
Seaworthy exportable polywood box |
| Delivery Detail: |
2 months |
Product Description

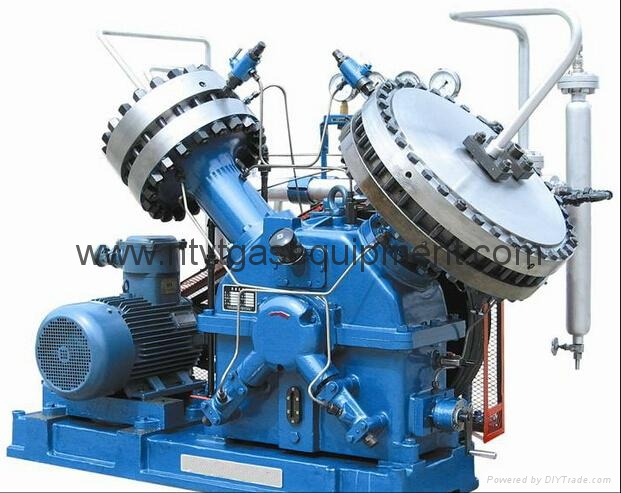

8Nm3/h Flow Rate Diaphragm Industrial Air Ammonia Compressor
Main Technical Data
Type: GV-8/8-160
Flow: 8Nm³/h
Inlet Pressure: 0.8Mpa
Outlet Pressure: 16Mpa
Power: 3KW
Dimension: 1310*686*980mm
Weight: 650kg
| Type |
Flow |
Inlet pressure |
Outlet pressure |
Power |
Dimension |
Weight |
| Nm3/h |
Mpa |
Mpa |
KW |
mm |
kg |
| GV-8/8-160 |
8 |
0.8 |
16 |
3 |
1310x686x980 |
650
|
Features:
1. Suitable compression media: high-purity gas, inert gas, helium gas, flammable and explosive gas, toxic gas, and other special gases.
2. Air pressure and discharge pressure mentioned here refer to indicator value.
3. Anybody who will choose or enquiry about our products, please provide the following necessary information aobut your requirement: suction pressure, discharge pressure, volume flow, compression media, related requirements. When used for special compression media, you should also need to provide us the data of its element and physical and chemical properties values.
Technical Data:
| No. |
Model |
Nominal volume flow N3/h |
Exhause capacity Nm3/h |
Inlet pressure MPa |
Outlet pressure MPa |
Dimension
L*W*H mm
|
Weight t |
Motor power kw |
| 1 |
GV-8/8-160 |
0.5 |
8 |
0.8 |
16 |
1310×686×980 |
0.65 |
3 |
| 2 |
GV-10/6-160 |
0.8 |
10 |
0.6 |
16 |
1200×600×1100 |
0.6 |
4 |
| 3 |
GV-10/8-160 |
0.8 |
10 |
0.8 |
16 |
1330×740×1080 |
0.65 |
4 |
| 4 |
GV-10/4-160 |
0.8 |
10 |
0.4 |
16 |
1330×740×1080 |
0.65 |
4 |
| 5 |
GV-7/8-350 |
0.8 |
7 |
0.8 |
35 |
1400× 845×1100 |
0.8 |
4 |
| 6 |
GV-15/5-160 |
0.8 |
15 |
0.5 |
16 |
1330× 740× 920 |
0.7 |
5.5 |
| 7 |
GV-5/7-350 |
0.8 |
5 |
0.7 |
35 |
1400× 845×1100 |
0.8 |
5.5 |
| 8 |
GV-5/200 |
0.5 |
5 |
0.1 |
20 |
1500× 780×1080 |
0.75 |
3 |
| 9 |
GV-5/1-200 |
0.6 |
11 |
0.1 |
2.5 |
1520× 800×1050 |
0.75 |
3 |
| 10 |
GV-11/1-25 |
0.6 |
11 |
0.1 |
2.5 |
1500× 780×1080 |
0.85 |
4 |
| 11 |
GV-12/2-150 |
0.8 |
12 |
0.2 |
15 |
1600× 776×1080 |
0.75 |
5.5 |
| 12 |
GV-20/10-160 |
0.8 |
20 |
1 |
16 |
1500× 800×1200 |
0.8 |
5.5 |
| 13 |
GV-30/5-30 |
9.8 |
30 |
0.5 |
3 |
1588× 768×1185 |
0.98 |
5.5 |
| 14 |
GV-10/1-40 |
0.4 |
10 |
0.1 |
4 |
1475× 580×1000 |
0.95 |
5.5 |
| 15 |
GV-20/4 |
0.6 |
20 |
air pressure |
0.4 |
1500× 900×1100 |
0.9 |
5.5 |
| 16 |
GV-70/5-10 |
1.5 |
70 |
0.5 |
1 |
1595× 795×1220 |
0.9 |
5.5 |
| 17 |
GV-8/5-210 |
0.4 |
8 |
0.5 |
21 |
1600× 880×1160 |
0.9 |
5.5 |
| 18 |
GV-20/1-25 |
0.8 |
20 |
0.1 |
2.5 |
1450× 840×1120 |
0.95 |
5.5 |
| 19 |
GV-20/10-350 |
1.2 |
20 |
1 |
35 |
1500× 750× 140 |
0.8 |
5.5 |
| 20 |
GV-15/5-350 |
1.05 |
15 |
0.5 |
35 |
1600× 835× 130 |
1 |
7.5 |
| 21 |
GV-20/8-350 |
1.2 |
20 |
0.8 |
35 |
1520× 820×1160 |
1 |
7.5 |
| 22 |
GV-12/5-320 |
1.2 |
12 |
0.5 |
32 |
1600× 835×1130 |
1 |
7.5 |
| 23 |
GV-15/8-350 |
1.1 |
15 |
0.8 |
35 |
1520× 820×1160 |
1.1 |
7.5 |
| 24 |
GV-18/10-350 |
1.2 |
18 |
1 |
35 |
1255× 800×1480 |
1.2 |
7.5 |
| 25 |
GV-35/4-25 |
0.8 |
35 |
0.4 |
2.5 |
1500× 810×1100 |
1 |
7.5 |
| 26 |
GV-50/6.5-36 |
1.25 |
50 |
0.65 |
3.6 |
1450× 850×1120 |
1.1 |
7.5 |
| 27 |
GV-20/5-200 |
1.2 |
20 |
0.5 |
20 |
1500× 780×1080 |
0.85 |
7.5 |
| 28 |
GV-20/3-200 |
1.2 |
20 |
0.3 |
20 |
2030× 1125×430 |
1.8 |
15 |
| 29 |
GV-25/5-160 |
1.2 |
25 |
0.5 |
16 |
1930×1150×1450 |
1.8 |
15 |
| 30 |
GV-40/0.5-10 |
1.2 |
40 |
0.05 |
1 |
2035× 700×1730 |
1.8 |
15 |
| 31 |
GV-20/200 |
1.2 |
20 |
air pressure |
20 |
1850×1160×1400 |
1.85 |
15 |
| 32 |
GV-90/30-200 |
2 |
90 |
0.3 |
20 |
2030× 970×1700 |
1.8 |
22 |
| 33 |
GV-30/8-350 |
2.2 |
30 |
0.8 |
35 |
2030 ×125×1430 |
1.8 |
22 |
| 34 |
GV-30/8-350 |
2.4 |
30 |
0.8 |
35 |
2040×1125×1430 |
1.8 |
22 |
| 35 |
GV-60/10-160 |
3 |
60 |
0.1 |
16 |
1800×1100×1400 |
1.8 |
22 |
| 36 |
GV-60/5-160 |
3 |
60 |
0.5 |
16 |
2030×1125×1430 |
1.8 |
22 |
| 37 |
GV-40/10-400 |
2.4 |
40 |
1 |
40 |
2000×1150×1500 |
1.8 |
22 |
| 38 |
GV-60/10-350 |
2.4 |
60 |
1 |
35 |
2070×1125× 430 |
1.8 |
22 |
| 39 |
GV-30/5-350 |
2.4 |
30 |
0.5 |
35 |
1900×1130×1450 |
2 |
22 |
| 40 |
GV-40/2.5-160 |
2 |
40 |
0.25 |
16 |
1900×1130×1450 |
2 |
22 |
| 41 |
GV-150/3.5-30 |
2 |
150 |
0.25 |
3 |
1900×1130×1450 |
2 |
22 |
| 42 |
GV-70/2.5-80 |
2 |
70 |
0.35 |
8 |
1880×1050×1400 |
2.12 |
22 |
| 43 |
GV-60/10-350 |
2.4 |
60 |
1 |
35 |
2070×1125×1430 |
1.8 |
22 |
| 44 |
GV-30/5-350 |
2 |
30 |
0.5 |
35 |
1900×1130×1450 |
2 |
22 |
| 45 |
GV-40/2.5-160 |
2 |
40 |
0.25 |
16 |
1900×1130×1450 |
2 |
22 |
| 46 |
GV-150/3.5-30 |
2 |
150 |
0.35 |
8 |
1900×1130×1450 |
2 |
22 |
| 47 |
GV-70/2.5-80 |
2 |
70 |
0.25 |
8 |
1880×1050×1400 |
2.12 |
22 |
| 48 |
GV-80/2.5-80 |
2 |
80 |
0.25 |
8 |
1880×1050× 400 |
2.12 |
22 |
| 49 |
GV-120/3.5-12 |
3.4 |
120 |
0.35 |
1.2 |
2030× 045×1700 |
2.2 |
22 |
******************************************************************************************
