Quick Details
- Condition: New
- Capacity: 21.1M3
- Place of Origin: Sichuan, China (Mainland)
- Brand Name: New Tianyuan
- Model Number: JXY9406GDY4-1.6
- Dimension(L*W*H): 11315*2490*3339MM
- Weight: 40000KG
- Certification: CSC,IMDG,RID,TIR,TC IMPACT APPROVED
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Working pressure: 1.6MPa
- Medium: LAr, liquid argon
Packaging & Delivery
| Packaging Details: |
nude packing |
| Delivery Detail: |
50 days |
Product Description

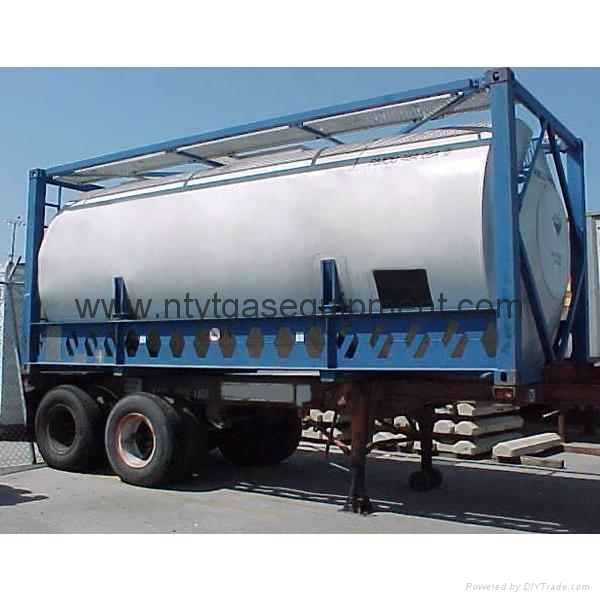

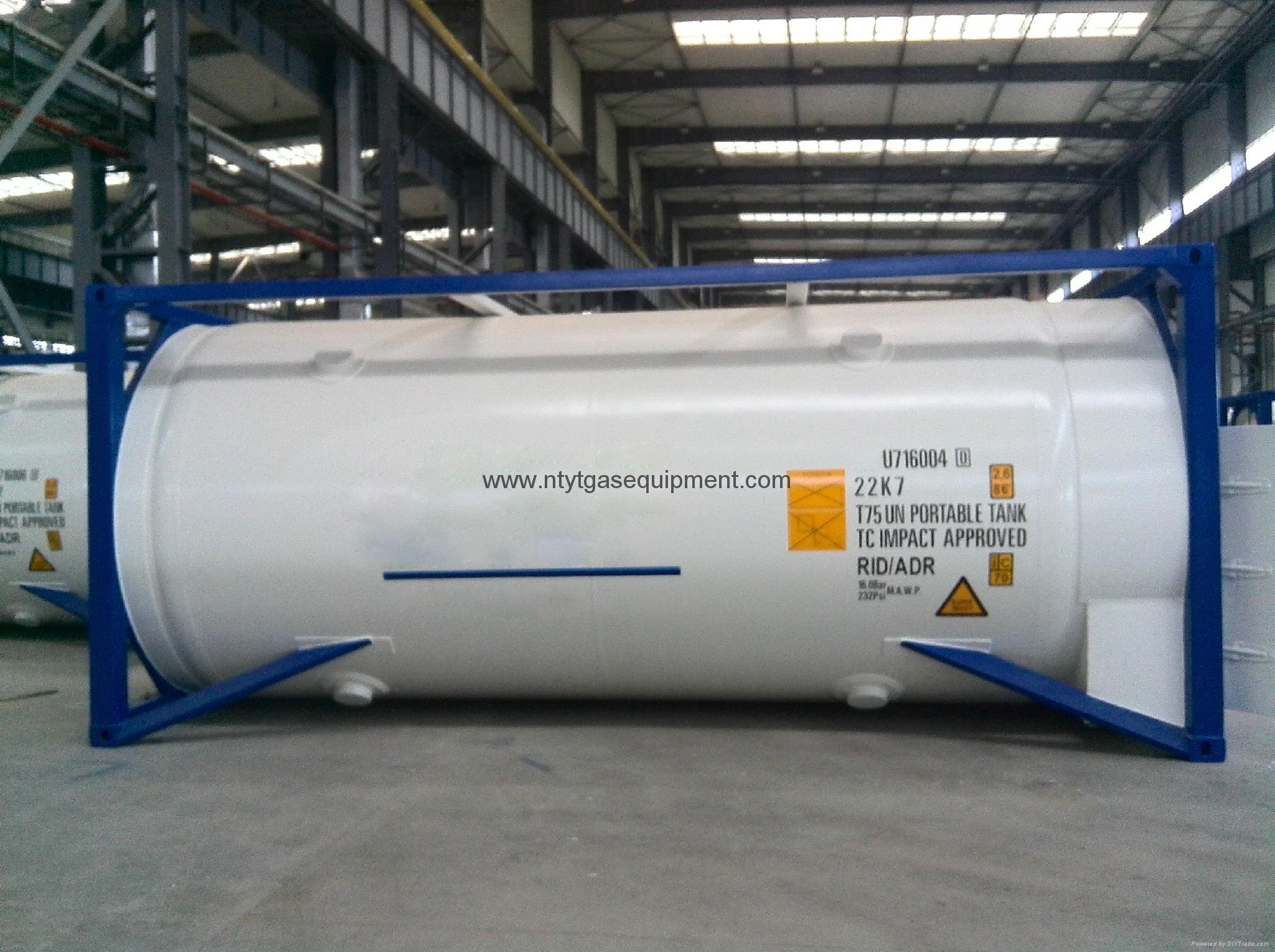

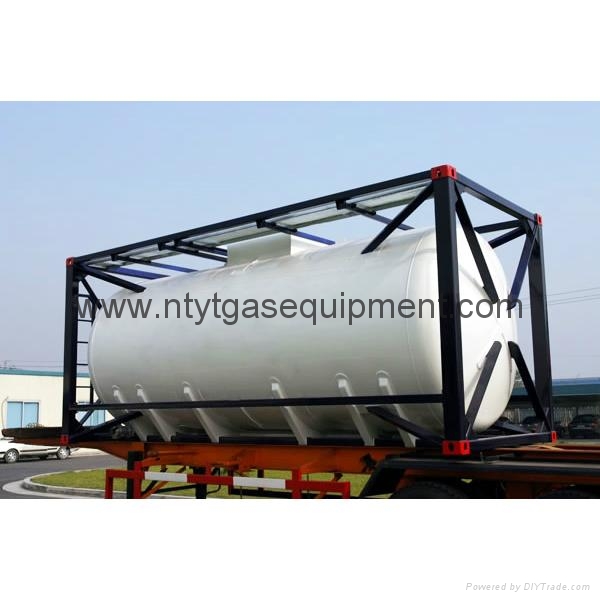

LAr Liquid Semi Trailer Container Loading Capacity 21.1Cub.m
Technical parameters:
| Product model |
JXY9406GDY4-1.6 |
| Loading medium |
LAr (Liquid argon) |
| Working pressure(MPa) |
1.6 |
| Geometic capacity(M3) |
21.1 |
| Valid capacity(M3) |
19.41 |
| Tank material |
Inner: 06Cr19Ni10/S30408
Outer jacket: Q345R |
| Curb weight(KG) |
12940 |
| Rated load(KG) |
27060 |
| Gross weight(KG) |
40000 |
| Outer dimension(L*W*H mm) |
10895*2490*3340 |
| Insulation method |
High vacuum multi-layer |
Our cryogenic tanks conform to GB150, GB18442 standard and ASME standard, are suitable for liquefied natural gas (LNG) etc. cryogenic liquid storage and application. Different volumes of tanks are available, and the maximum allowable working pressure is 0.8MPa and 1.2MPa.
We adopt advanced vacuum acquisition and maintenance technology to guarantee good insulation performance, long vacuum holding time and low maintenance cost.
External pipelines adopt modular design and prefabrication, which can be more compact and concise, and the user can get more reliable system, more convenient installation, maintenance and lower maintenance costs.
It passes CCS attestation and can meet international marine requirements with certificate issued by International Classification Society according to user’ demand.
******************************************************************************************
