Quick Details
| Condition: |
New
|
Place of Origin: |
Sichuan China (Mainland)
|
Brand Name: |
NTYT
|
| Model Number: |
NTYT-21-25CNG
|
Dimension(L*W*H): |
12192X2438X1675(MM)
|
Weight: |
18200KG
|
| Transmission Length: |
1000 km
|
Hoisting Height: |
1675 m
|
Certification: |
ISO11120
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Product Description

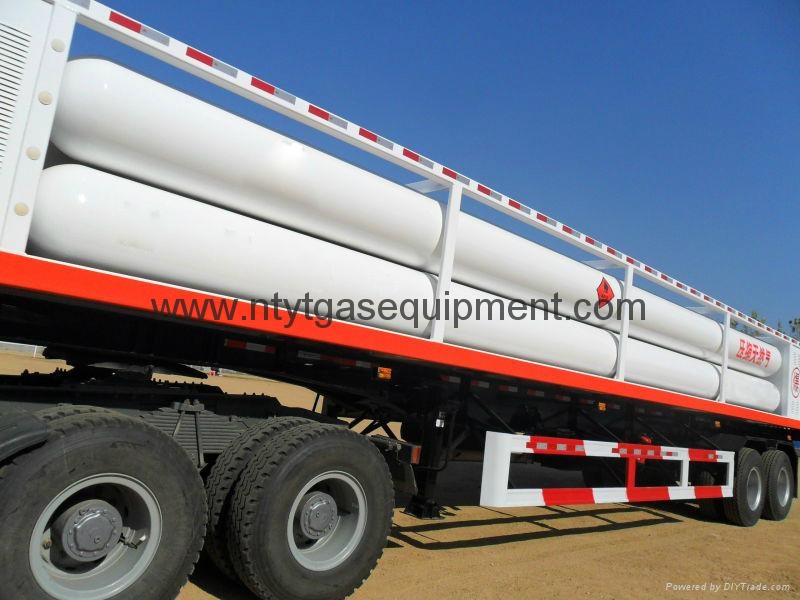

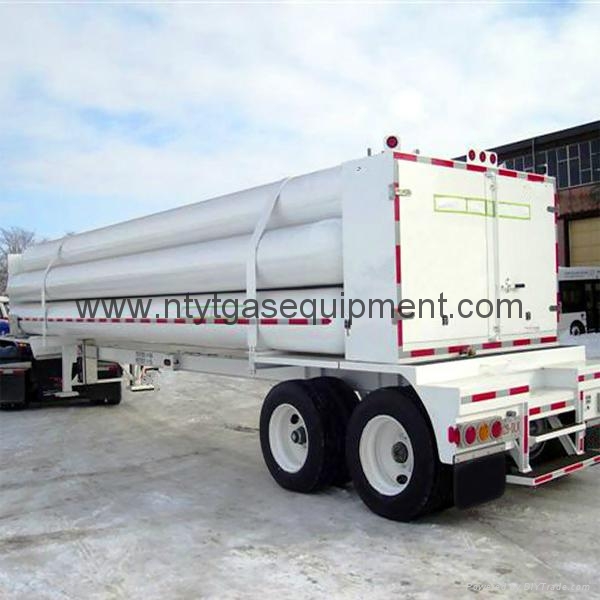

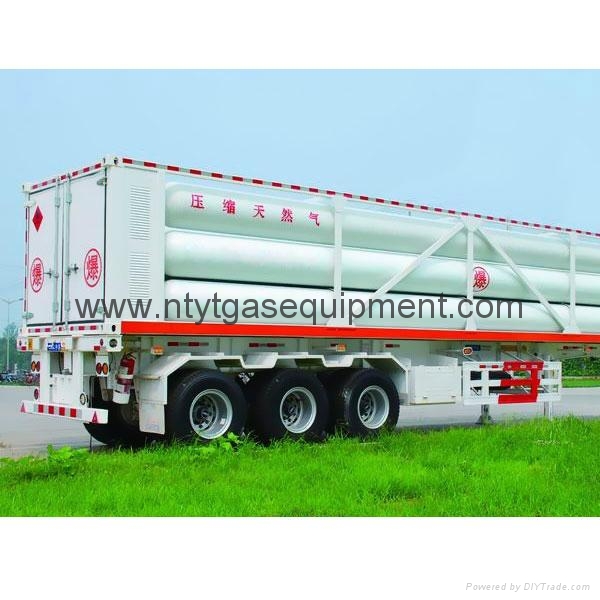

4-Tube Skid CNG Container Integrated Volume 3000L Jumbo Tubes
TECHNICAL SPECIFICATIONS:
|
4-CNG -Tube Skid 40-Feet Container Data Sheet (CNG Volume 3560Nm³)
|
|
Tube Skid Container
|
Model No.
|
CNGGS-21-25 XN
|
Jumbo Tube
|
Filling media
|
CNG
|
|
Tube quantity(piece)
|
4
|
Working pressure(Mpa)
|
25
|
|
Filling media
|
CNG
|
Design pressure (Mpa)
|
25
|
|
Empty weight(kg)
|
18200
|
Hydrotest pressure(Mpa)
|
37.5
|
|
CNG loading weight(kg)
|
2620
|
Leaking test pressure(Mpa)
|
25
|
|
Full load weight(kg)
|
20820
|
Ambient temperarue(℃)
|
-40~60
|
|
CNG loading volume(Nm³)
|
3560
|
Tube material
|
34CrMo4
|
|
Water capacity (m³)
|
12
|
Volume (Lit)
|
3000
|
|
Leaking test pressure(Mpa)
|
25
|
Water capacity(m³)
|
3
|
|
Burst test pressure(Mpa)
|
37.5
|
Filling weight(kg)
|
655
|
|
Working temperature(℃)
|
-40~60
|
Tube weight(kg)
|
3450
|
|
Safety device dia.(mm)
|
Not less than Ø20
|
Wall thickness(mm)
|
20.1
|
|
Filling connector dia.(inch)
|
1
|
Outer diameter(mm)
|
Ø711
|
|
Container dimension(LxWxH in mm)
|
12192x2438x1675
|
Tube length(mm)
|
9040
|
******************************************************************************************
