高性能CNG加氣站增壓泵
|
|
| 型號︰ | 2L |
| 品牌︰ | NTYT |
| 原產地︰ | 中國 |
| 最少訂量︰ | 1 件 |
|
|
|
|
|
|
|
Detailed Description
| Model No. |
2L |
| Company code |
023 |
| Structure type |
L |
| Compressed medium |
CNG |
| Cooling style |
Water cooling or other |
| Lube style for cylinder |
oil free |
| No. of row |
2 |
| No. of compressing stages |
1 |
| Capacity (m3/min) |
2.2 |
| Suction pressure (×0.1MPa) (G) |
1.4 |
| Discharge pressure (×0.1MPa) (G) |
4.6 |
| Piston stroke (mm) |
120 |
| Speed of crack-shaft (r/min) |
730 |
| Shaft power (KW) |
13 |
| Piston rod load (KN) |
20 |
| Outline dimension (L×W×H) (mm) |
890×530×1800 |
| Weight of main unit (T) |
0.8 |
| Weight of assembly unit (T) |
1.4 |
| Model of the motor |
YB200L-8B2d |
| Name of the motor |
Flame-proof enclosure asynchronous motor |
| Motor power (KW) |
15 |
| Motor voltage (V) |
380 |
| Motor speed (r/min) |
730 |
|
|
|
|

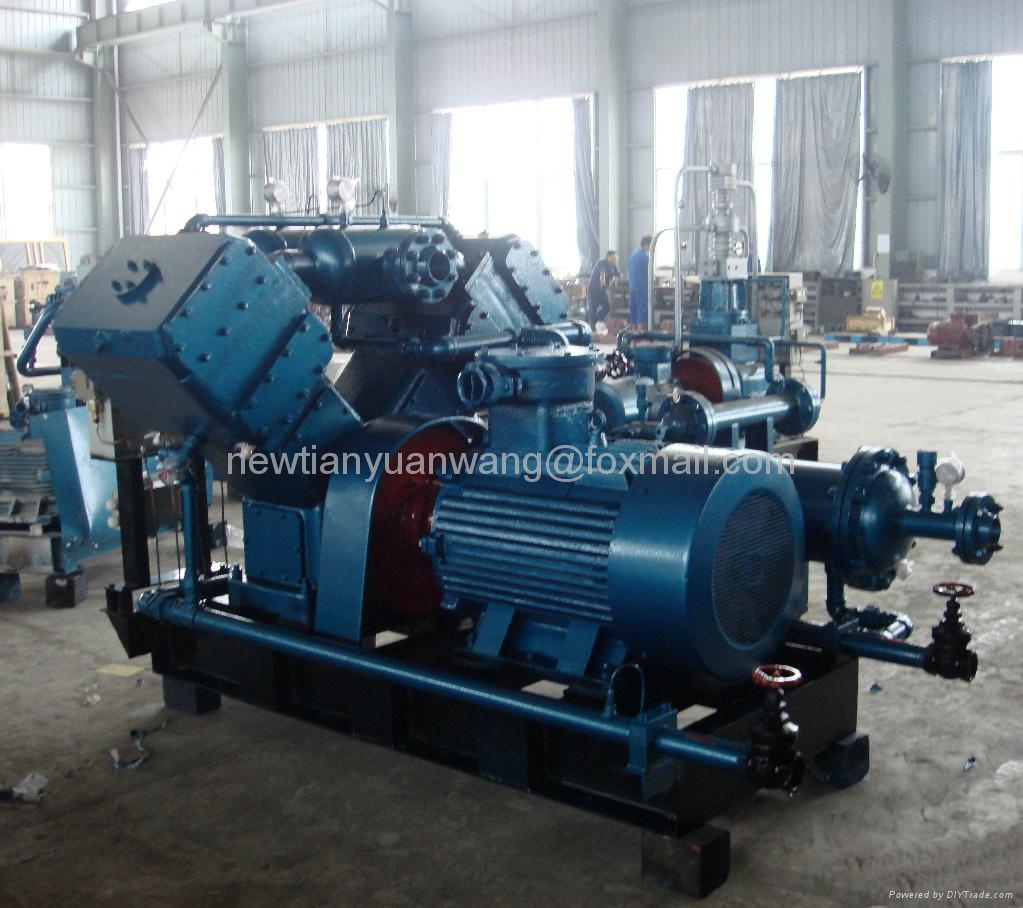

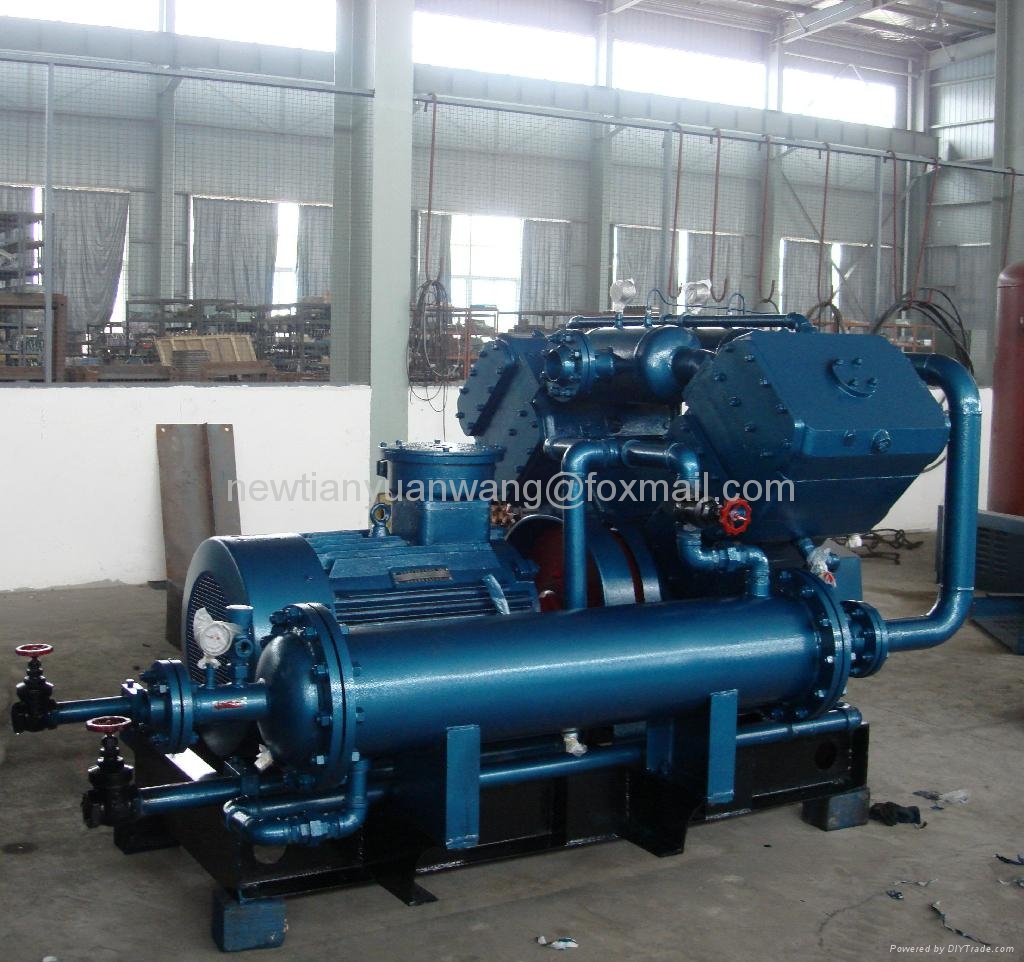

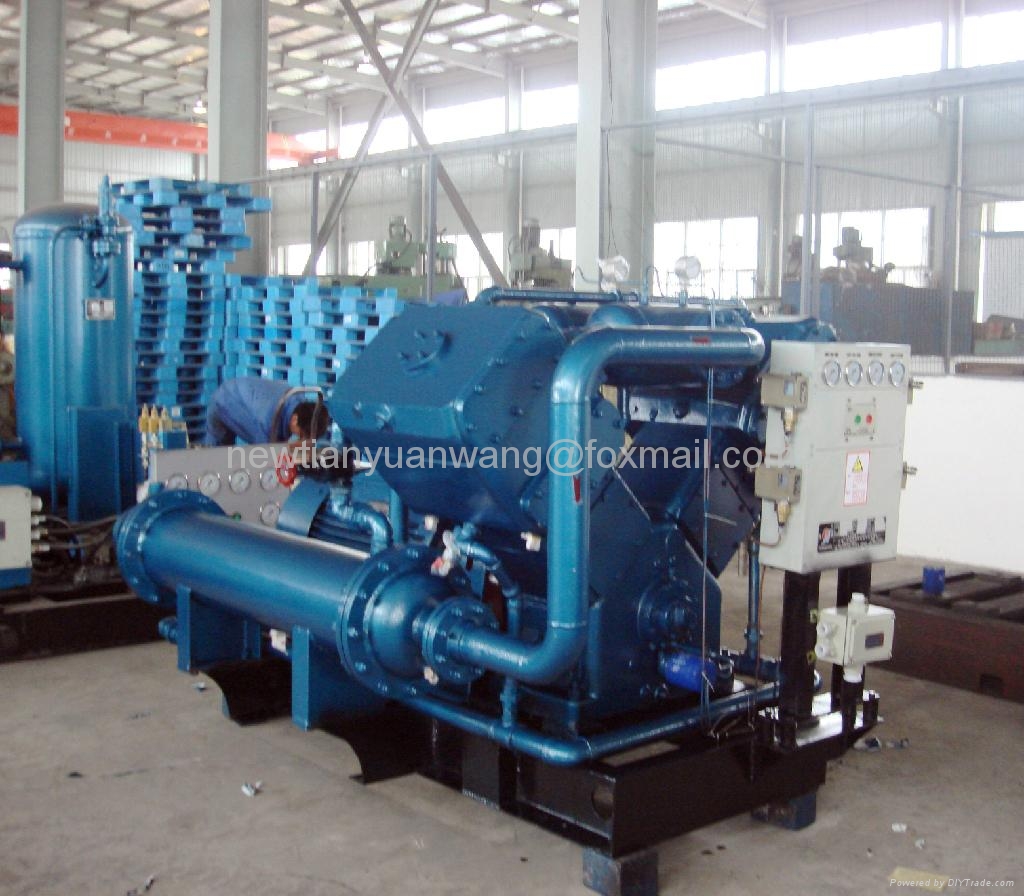

產品圖片
|
|
|
