發電廠和天然氣管網增壓機
|
|
| 型號︰ | 2Z2-2.2/1.4-4.6 |
| 品牌︰ | NTYT |
| 原產地︰ | 中國 |
| 單價︰ | - |
| 最少訂量︰ | 1 件 |
|
|
|
|
|
|
|
|
parameter
|
2Z2-2.2/1.4-4.6
|
|
company code
|
023
|
|
structure type
|
Z
|
|
compressed medium
|
Raw oil process gas
|
|
cooling style
|
water cooling
|
|
lube style for cylinder
|
oil free
|
|
No. of row
|
2
|
|
No. of compressing stages
|
1
|
|
capacity(m3/min)
|
2.2
|
|
suction pressure(×0.1MPa)(G)
|
1.4
|
|
discharge pressure(×0.1MPa)(G)
|
4.6
|
|
piston stroke(mm)
|
120
|
|
speed of crack-shaft r/min)
|
730
|
|
shaft power(KW)
|
13
|
|
piston rod load(KN)
|
20
|
|
mmoutline dimension((L×W×H))
|
890×530×1800
|
|
Weight of main unit(t)
|
0.8
|
|
Weight of assembly unit(t)
|
1.4
|
|
model of the motor
|
YB200L-8B2d
|
|
name of the motor
|
flame-proof enclosure asynchronous motor
|
|
motor power (KW)
|
15
|
|
motor voltage (V)
|
380
|
|
motor speed (r/min)
|
730
|
|
|
|
|

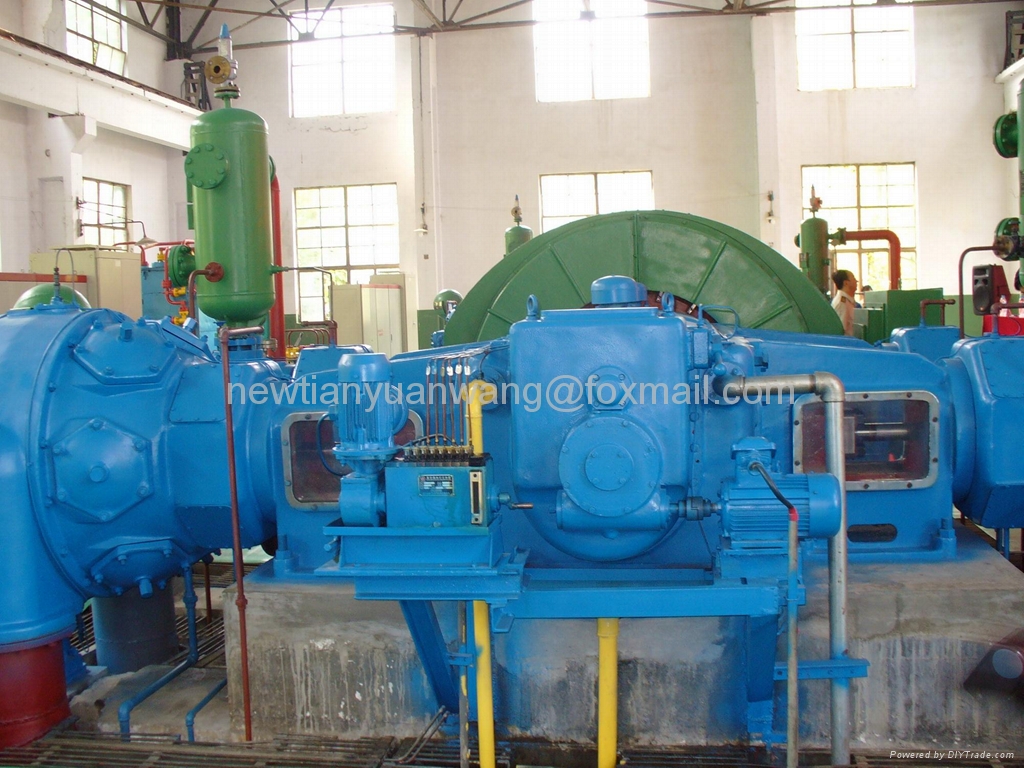

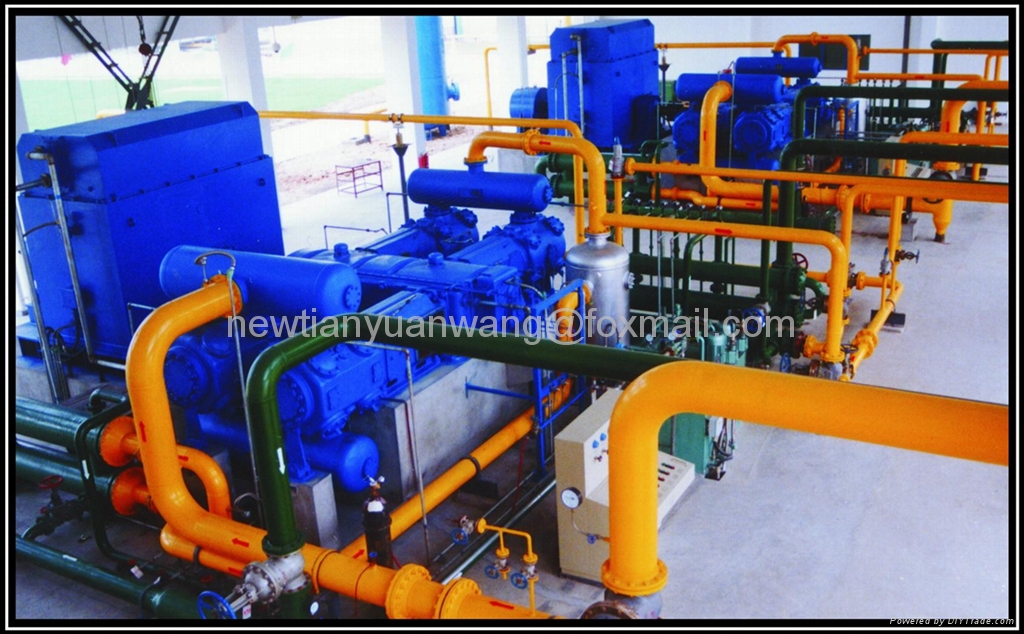

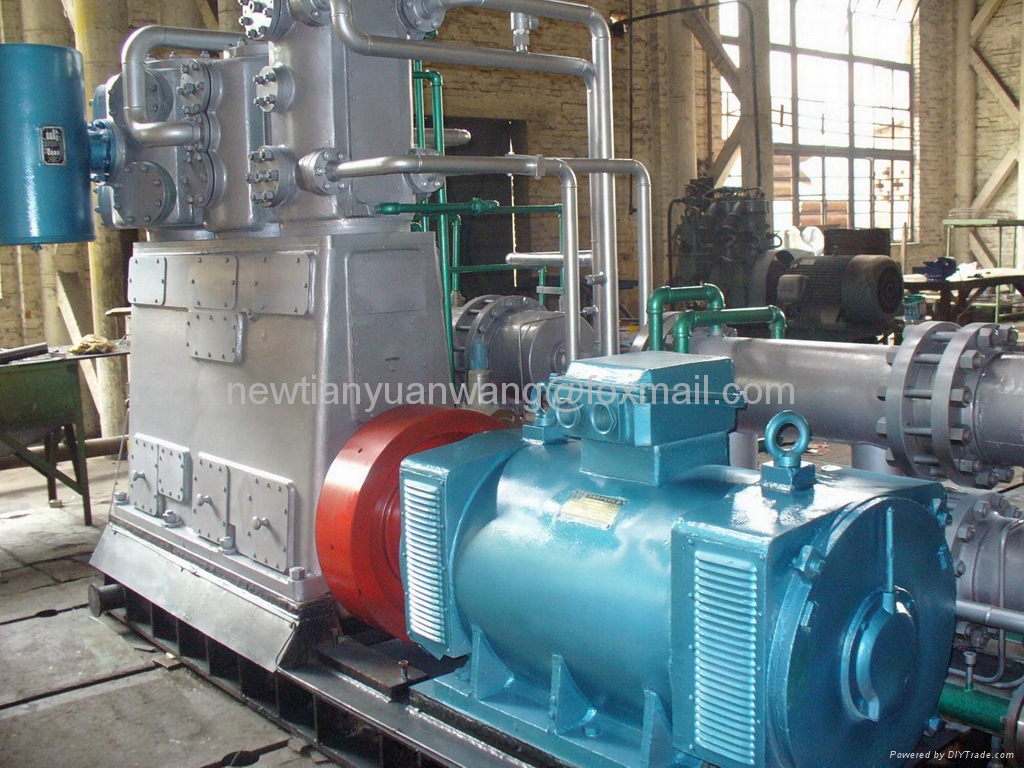

產品圖片
|
|
|
