Quick Details
- Use: Truck Trailer
- Type: Semi-Trailer
- Material: Steel
- Certification: SGS
- Size: 4000Nm³
- OEM No.: GSJ12-1090-CNG-25
- Max Payload: 33996KG
- Place of Origin: Sichuan, China (Mainland)
- Brand Name: New Tianyuan
- Model Number: GSJ12-1090-CNG-25
- Color: White
Packaging & Delivery
| Packaging Details: |
Exportable seaworthy container |
| Delivery Detail: |
40 days after receiving advanced payment. |
Product Description

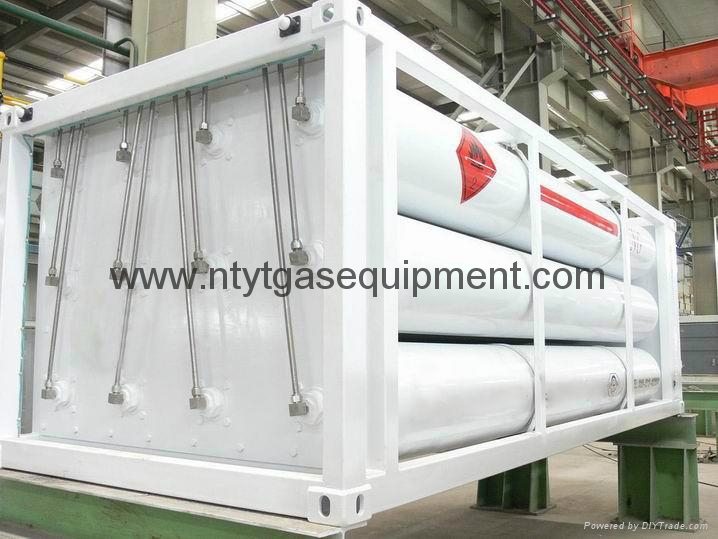

12-Tube Jumbo Tube Skid CNG Transportation Cotainer Semi Trailer
TECHNICAL SPECIFICATIONS
|
12-CNG -Tube Skid 20-Feet Container Data Sheet (CNG Volume 4000Nm³)
|
|
Tube Skid Container
|
Model No.
|
GSJ12-1090-CNG-25
|
Jumbo Tube
|
Filling media
|
CNG
|
|
Tube quantity(piece)
|
12
|
Working pressure(Mpa)
|
25
|
|
Filling media
|
CNG
|
Design pressure (Mpa)
|
25
|
|
Empty weight(kg)
|
19632
|
Hydrotest pressure(Mpa)
|
37.5
|
|
CNG loading weight(kg)
|
2835
|
Leaking test pressure(Mpa)
|
25
|
|
Full load weight(kg)
|
22467
|
Ambient temperarue(℃)
|
-40~60
|
|
CNG loading volume(Nm³)
|
4000
|
Tube material
|
4130X
|
|
Water capacity (m³)
|
12.60
|
Volume (Lit)
|
1090
|
|
Leaking test pressure(Mpa)
|
25
|
Water capacity(m³)
|
1.09
|
|
Burst test pressure(Mpa)
|
37.5
|
Filling weight(kg)
|
247
|
|
Working temperature(℃)
|
-40~60
|
Tube weight(kg)
|
1350
|
|
Safety device dia.(mm)
|
Ø20
|
Wall thickness(mm)
|
17.4
|
|
Filling connector dia.(inch)
|
1
|
Outer diameter(mm)
|
Ø559
|
|
Container dimension(LxWxH in mm)
|
6058x2438x2035
|
Tube length(mm)
|
5490
|
Attested With CE-TPED, BV-ISO11120, UT, GOST, ISO9001 Standards
It consists of the following two parts:CNG jumbo tube and CNG tube cascade skid container.
CNG long-tube trailer is the gas source of CNG filling sub station. It also can transport CNG for the civil gas system. It is an effective supplementary method to the pipe conveyance of gas. Its technology is simple and it occupies small ground. It has the following traits:
1. Import valves with high quality;
2. Advanced manufacture technology, fine manufacture equipment and feasible quality insurance system.
3. Scientific design and logical load bearing structure. This can realize the perfect combination of tractor and trailer. It can assure the safe and steady transportation.
4. It can realize various combinations with CNG storage cylinders groups and can satisfy different requirements of customers.
******************************************************************************************
