Quick Details
- Use: Truck Trailer
- Type: Semi-Trailer
- Material: Steel
- Certification: ISO
- Size: 12192*2438*1890MM
- OEM No.: GSJ9-2450-CNG-25
- Max Payload: 31260
- Place of Origin: Sichuan, China (Mainland)
- Brand Name: New Tianyuan
- Model Number: GSJ9-2450-CNG-25
- Medium: Helium Gas
Packaging & Delivery
| Packaging Details: |
Nude Packing |
| Delivery Detail: |
50 days |
Product Description

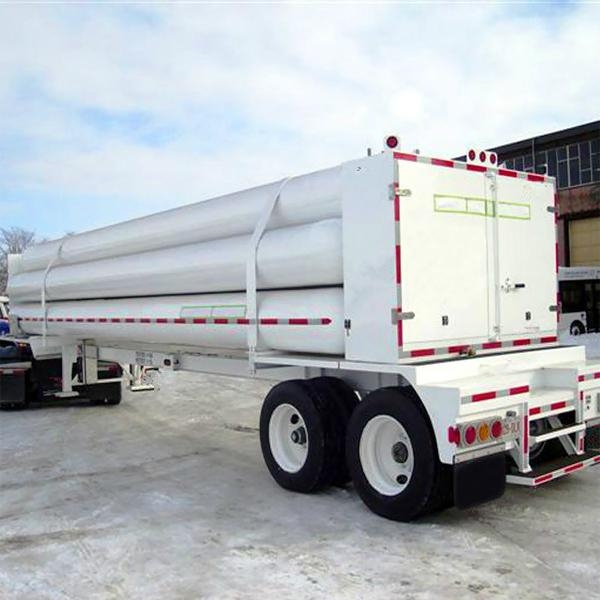

Energy-saving Design 40ft Container Helium Tube Trailer
Tube bundle container is an energy efficient product through energy-saving design and 8-tube 559 hydraulic car. It is developed according to the needs of the development of the industry, has the following advantages:
1. Combining gas transportation and gas filling together, which can realize the function of gas transportation, at the same time filling gas at any place of the station.
2. Installing the tilt cylinders to saving energy. Hydraulic cylinder no longer need to be raised with a certain angle to fill gas.
3. Using an analog level control system and return oil pressure control simulation to adjust the amount of exhaust gas to a higher level.
4. Imported oil Caltex, more durable, longer service life.
Remarks:

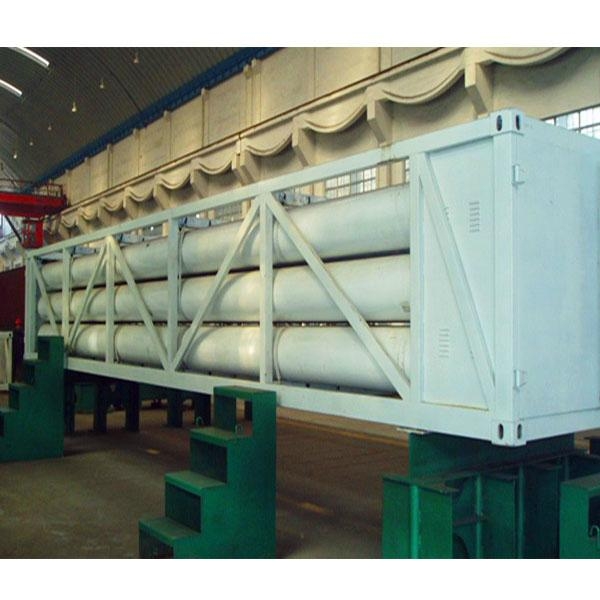

Tube bundle container is composed of two parts, each can be used independently. The chassis is 155 with the national announcement, which is for vehicle license plate; the above is the tube bundle container, can be used in a fixed location.
Specification of 8-tube CNG trailer:
| Jumbo tube skid |
Item |
|
Specification |
| Model |
|
GSJ9-2450-CNG-25 |
| Volume |
M3 |
22.05 |
| Net weight |
KG |
26300 |
| Load weight |
KG |
4960 |
| Full load weight |
KG |
31260 |
| Leakage test pressure |
MPa |
25 |
| Safety device burst pressure |
MPa |
37.5 |
| Safety device diameter |
MM |
≥Φ20 |
| Filling connector diameter |
MM |
1" |
| Outside diameter |
MM |
12192*2438*1890 |
| Jumbo tube |
Item |
|
|
| Working pressure |
MPa |
25 |
| Design pressure |
MPa |
25 |
| Ambient temperature |
℃ |
-50 - 60 |
| Tube material |
|
4130X |
| Medium |
|
CNG |
| Volume |
L |
2450 |
| Filling weight |
KG |
551 |
| Tube weight |
KG |
2500 |
| Hydraulic test pressure |
MPa |
37.5 |
| Leakage test pressure |
MPa |
25 |
| |
|
|
