uick Details
| Material: |
Aluminium
|
Use: |
liquid gas
|
Pressure: |
Low
|
| Place of Origin: |
Sichuan China (Mainland)
|
Brand Name: |
New Tianyuan
|
Model Number: |
DPL300-30-1.4
|
Product Description

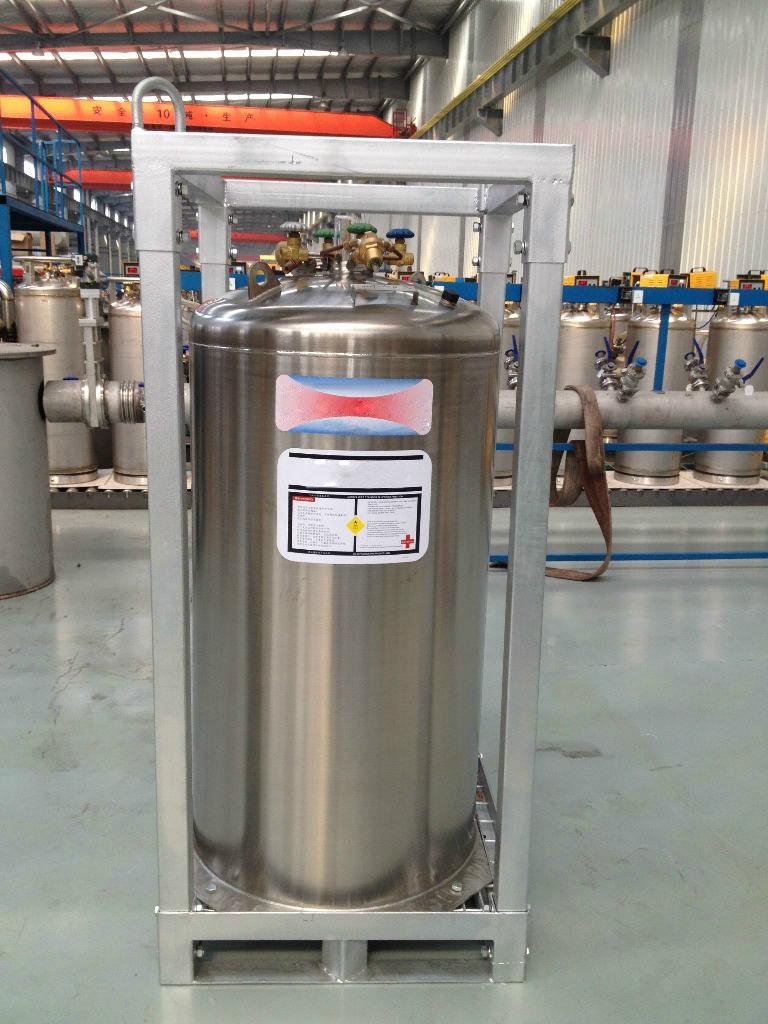

Cryogenic Thermal Isolated 1.4MPa Working Pressure LNG Vehicle Cylinder
Model No.: DPL300-30-1.4
Outside diameter: 354MM
Height: 824MM
Main material: 06Cr19Ni10
Empty weight: 37KG
Service pressure: 1.4MPa
Safety valve opening pressure: 1.68MPa
Working pressure: 0.27-1.1MPa
Setting pressure of operating: 0.8-1.0MPa
Nominal volume: 30L
Effective volume: 28.5L
Filling medium: LO2 LN2 LAr LNG
Max. filling weight (KG): 29 21 36 12.1
Gas delivery rate: 1.6m3/h
Evaporation rate: LN2≤3.96 %/d
Surface treatment: Polish
Product features:
1. Industrial gas cylinder as a cryogenic insulation pressure vessels, designed with double(vacuum) structure, the liner is used to store liquefied natural gas. The outer wall of the tank insulation layers, with insulation performance while inter-layer (the space between the two containers) was evacuated to a high vacuum, together form a good insulation system.

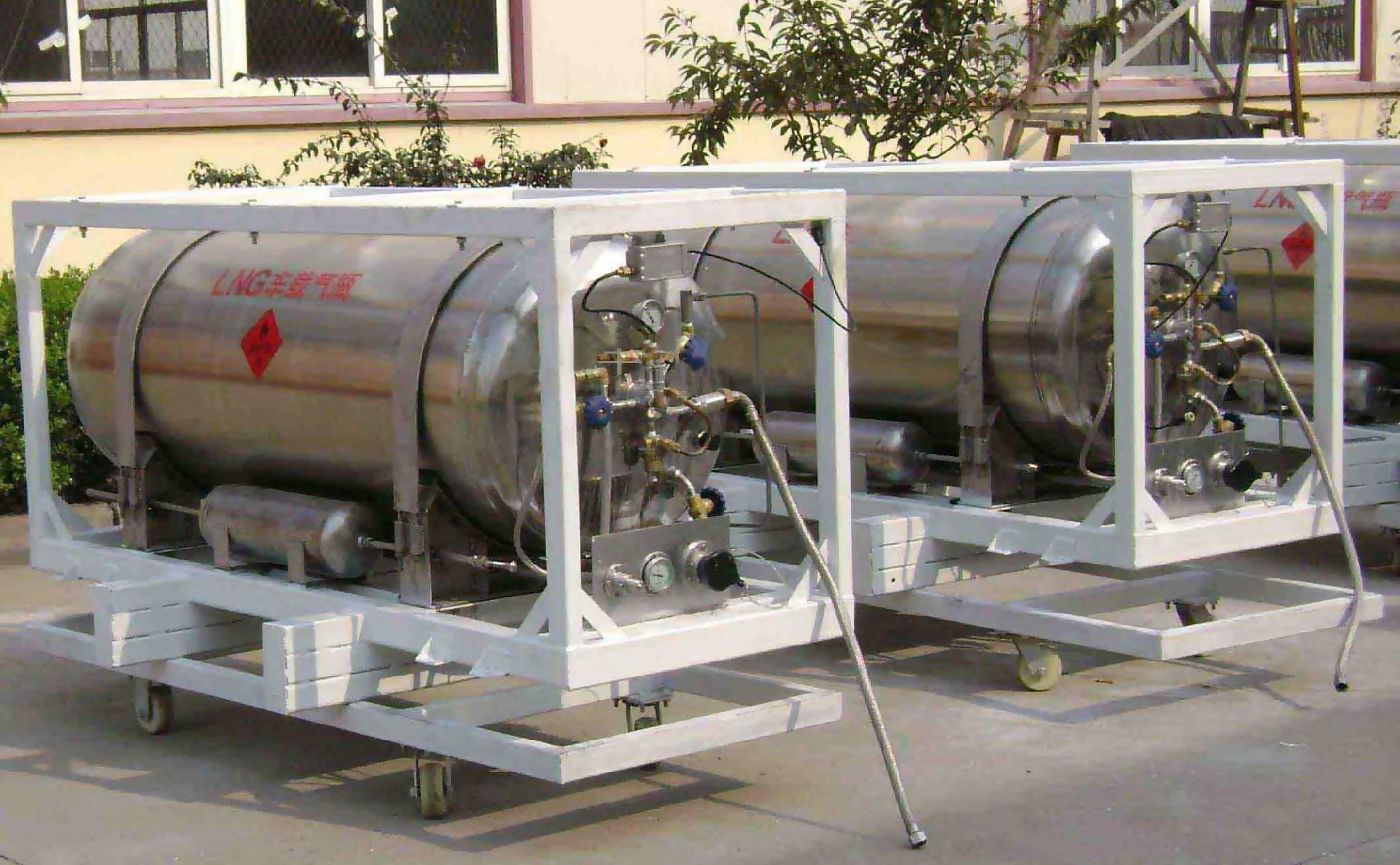

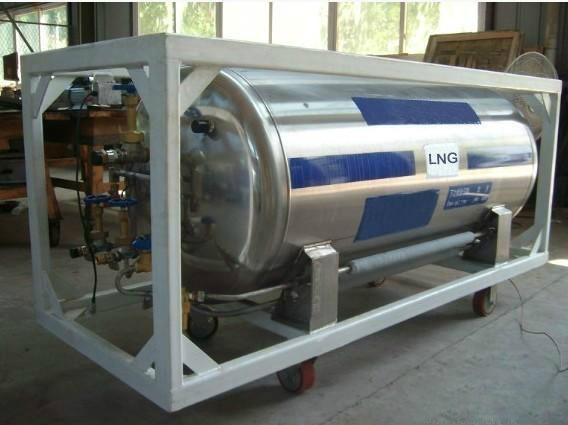

2. Industrial Gas Welded Thermal-insulating Cylinder
Thermal-insulating Mode: Super-vacuum Multi-layer Thermal Insulation
Specification: 150L,200L,240L,275L,280L,335L,375L,450L,500L (Horizontal)
Working Pressure:≤2.88Mpa
Medium: LOX/LIN/LAr/LCO2/LNG/LN2 etc.
It applies to scientific research, chemical, electronic industries, welding etc
Applied Code: GB/DOT
3. Introduce the water bath vaporizer cylinders of liquefied natural gas vehicle industry.
Product performance is not only in line with industry standards, and industry-related sectors through a one-time detection.
Long term high-vacuum insulation systems, providing customers with longer service life of the products
Full gas cryogenic valves on the system are imported, to further ensure cylinders excellent performance.
