Quick Details
- Material: Composite Material
- Use: for kinds of Liquid gas
- Pressure: High
- Place of Origin: Sichuan, China (Mainland)
- Brand Name: NTTC
- Model Number: CDPW500-275-1.58
Packaging & Delivery
| Packaging Details: |
woven bag, plastic bag or carton as customer's requirement |
| Delivery Detail: |
3 weeks |
Product Description

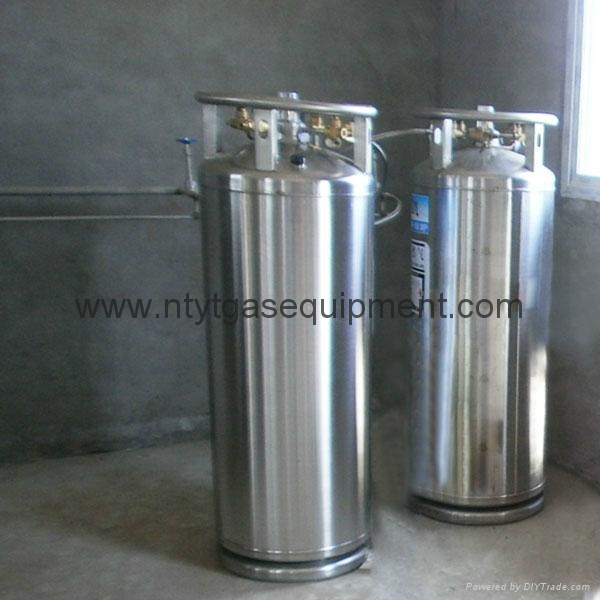

LNG 195L Effective Volume Cryogenic Empty Gas Cylinder
Effective volume(L): 195
Nominal volume (L): 210
Medium: LNG
Nominal pressure(MPa): 1.6
Design temperature(℃): -196
Taka shinzora multilayer winding: Taka shinzora multilayer winding
Empty weight(KG): 124
Size(MM): Φ510*1760
| Type |
CDPW500-275-1.58 |
CDPW600-335-1.6 |
CDPW600-383-1.6 |
CDPW600-450-1.6 |
CDPW600-500-1.6 |
| External diametermm |
∅556 |
∅658 |
∅658 |
∅658 |
∅658 |
| Length mm |
1723 |
1516 |
1672 |
1906 |
2280 |
| Main materails |
06Cr19Ni10 |
06Cr19Ni10 |
06Cr19Ni10 |
06Cr19Ni10 |
06Cr19Ni10 |
| Ways of heat insulation |
multi-layer insulation |
multi-layer insulation |
multi-layer insulation |
multi-layer insulation |
multi-layer insulation |
| Working pressure MPa |
1.59 |
1.59 |
1.59 |
1.59 |
1.59 |
| Design pressure Mpa |
3.18 |
3.18 |
3.18 |
3.18 |
3.18 |
| Design tempareture °C |
-196 |
-196 |
-196 |
-196 |
-196 |
| Opening pressure of safety valve MPa |
The first stage 1.70, the second stage 2.41 |
The first stage 1.70, the second stage 2.41 |
The first stage 1.70, the second stage 2.41 |
The first stage 1.70, the second stage 2.41 |
The first stage 1.70, the second stage 2.41 |
| Norminal volume L |
275 |
335 |
383 |
450 |
500 |
| Dischargeabel capacity L |
248 |
302 |
345 |
405 |
460 |
| Maximum filling weight Kg |
106 |
129 |
147 |
173 |
197 |
| Liquid gauge |
capacitance |
capacitance |
capacitance |
capacitance |
capacitance |
| Surface treatment |
polishing |
polishing
|
polishing
|
polishing
|
polishing
|
